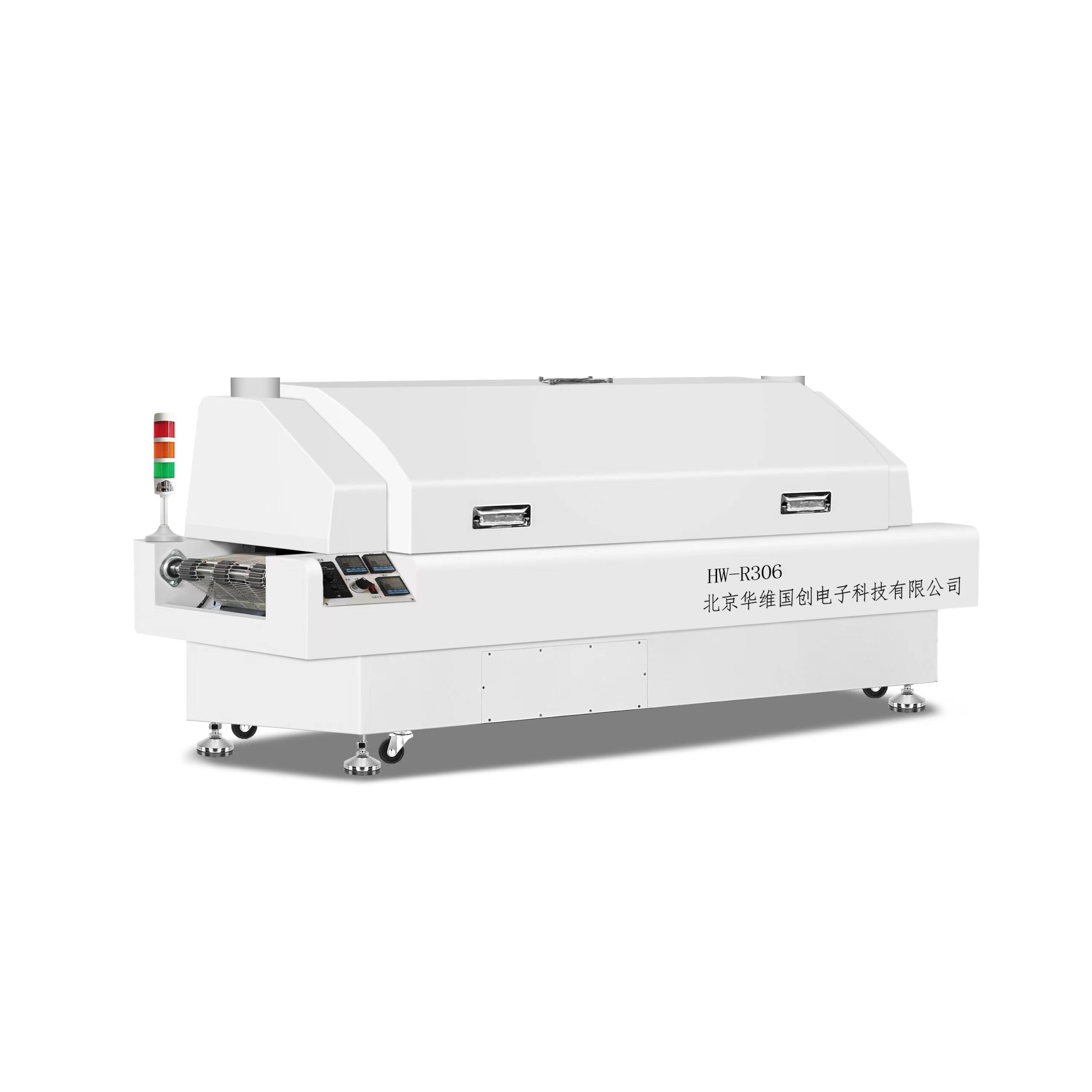

Reflow Oven R306 DESKTOP
¥11,500.00
Description
TECHNICAL PARAMETER:
| Heating temperature zone: | 6 |
| Heating zone length: | 1000mm |
| Heating element: | vacuum ultra-long life nickel-chromium heater |
| Heating method: | turbocharged full hot air temperature zone independent small cycle forced heating and rapid temperature increase, power saving and energy saving |
| Whole machine control mode: | operation panel keys plus microcomputer intelligent instrument PID closed-loop control / touch screen control |
| Heating time: | ≤15 minutes |
| Number of cooling zones: | 1 |
| Cooling method: | constant current forced air cooling |
| Temperature control accuracy: | ± 1 ℃ |
| PCB board lateral deviation: | ± 2 ℃ |
| PCB maximum width: | the horizontal width of the mesh belt is 300mm |
| Component allowable height: | 35mm |
| Transportation direction: | left → right |
| Transmission belt height: | mesh belt 900 ± 20mm |
| Transmission method: | stainless steel B-shaped mesh belt |
| Conveyor speed: | 150-220mm / min. |
| Abnormal alarm: | ultra high temperature alarm |
| Power supply: | AC220V / 50HZ |
| Start / normal power: | 6KW / 2KW |
| Weight: | desktop 130Kg, vertical three-temperature zone, 180Kg |
| Dimensions: | desktop L1650 × W613 × H660mm vertical machine L1650 × W613 × H1225mm |
Introduction of equipment characteristics
The HW-R306 desktop reflow soldering machine launched by Beijing Huawei Guochuang Electronic Technology Co., Ltd. is a small reflow soldering machine, but the core structure of the core part is the same as that of the mainframe; its biggest advantage is that the liner uses The most advanced turbocharging technology, the biggest feature of this technology is to ensure that the suction air can be blown out from each hole of the rectifier plate to the greatest extent, and the air volume and wind speed between each hole are even; The system has many advantages, such as precise temperature control, power saving and energy saving, simple operation, and space saving. It is very suitable for customers who have high quality requirements and want high precision, but the space and batch are not large.
| Selection of small reflow soldering machine | |||
| Manufacturer | Structure | Heater | Yunfeng System |
| HWGC | Turbine forced supercharging structure, with even and strong wind, high thermal compensation efficiency, rapid temperature rise,
energy saving. |
The vacuum tight heater has the characteristics of long life and rapid temperature rise. The general life of this structure heater
will exceed ten years. |
Taiwan genuine H-level reflow soldering high temperature motor |
| Others | The fan blades are added with ordinary heaters or infrared heating tubes, and even the fan blades and the fan motor are not
available. Direct infrared tube baking, the temperature difference is simply uncontrollable, and there will usually be a 20-50 degree temperature difference. |
The life of ordinary heaters and infrared tube heaters is one to five years. After a long heating time, the heating wire directly
contacts with oxygen. The oxidation becomes brittle and it is particularly afraid of vibration. The heating wire is easy to break. |
Range hood fan |
| A standard reflow soldering machine takes the solder paste composition Sn63Pb37 as an example. The melting point is 183 degrees,and the maximum soldering zone temperature is 230-240. The problem. Some manufacturers even need at least 280 degrees to just reach the fusion temperature; I hope you will pay special attention when choosing a reflow soldering machine! | |||
Compared with other manufacturers’ equipment on the market
